(T)MKDL-T: Direct steam mixer kettle, tilting
JACKETED MIXER KETTLE (3.5 Bar boiling Pan), 2/3 STEAM JACKETED, 50 PSI STEAM on 40-100 gallons, 35 PSI STEAM on 125-150 gallons

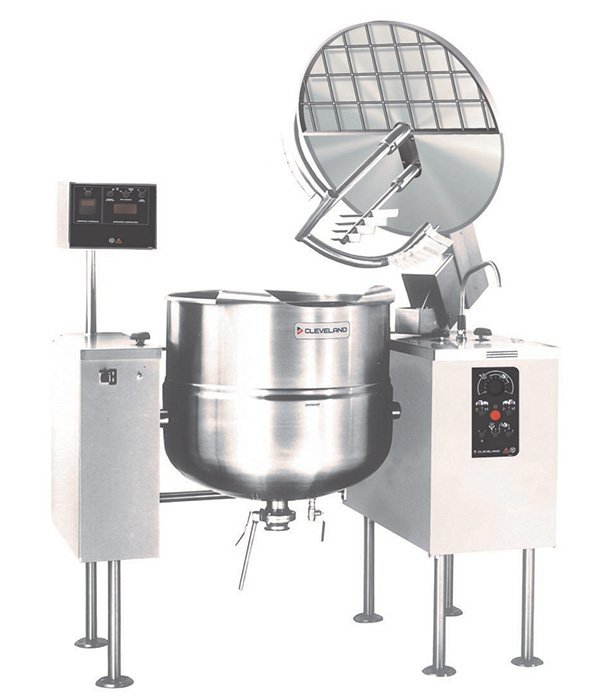

CLEVELAND Tilting Mixer Kettle Model (T) MKDL - _____ -T, Console/Leg mounted, Direct Steam Mixer Kettle with _____ psi Steam Jacket Rating. 3 H.P. Hydraulic powered Scraper/Agitator and Bridge Lift. 0-40 rpm Scraper Speed with Variable Scraper to Agitator Ratio from 1-1 to 8-1. Stainless Steel enclosed Mixer Bridge. All Plumbing, Electrical and Hydraulics enclosed in Consoles. Gallon markings, Bayonet Mounted Scraper and Agitator. 3" Butterfly Valve. Hot and Cold Water Faucet. Steam Control Kit. Safety Device prevents high speed starts; Mixer stops when Bridge is lifted. Kettle and all exterior surfaces are Stainless Steel.
|
Water Faucet
Hot and cold water faucet with 3/4" swing spout |
|
Mixing
3 HorsePower Hydraulic powered Agitator, Scraper and Bridge Lift. Infinitely Variable Scraper Speed Control from 0 to 40 rpm. Infinitely Variable Ratio between Scraper and Agitator: Agitator rotates from 0 to 8 times the speed of the Scraper. Removable (without tools) Nylon Blades scrape the entire Jacketed Surface. Safety Device prevents high speed Starts. Mixing stops when Bridge is lifted. Agitator and Scraper are Bayonet Mounted for easy removal. |
|
Steam Control Kit
Chrome-Plated & Factory installed |
|
Tilt Mechanism
Roller bearings and case hardened self-locking worm and segment gear. |
|
Power Tilt
Standard on 150 gallon model |
|
Butterfly Valve
3" diameter Quick Opening |
|
Condensate Valve
With Insulated Handle |
|
Steam Jacket Rating
50 psi on 40 - 100 gallon models, 35 psi on 125 & 150 gallon models |
|
Stainless Steel Construction
All Plumbing, Electrical, Hydraulics enclosed in Stainless Steel Consoles. Enclosed, 10 Gauge Stainless Steel hydraulically operated Mixer Bridge. Kettles and all exterior surface are Stainless Steel. |
| Large Pouring Lip |
|
Gallon Markings
Stamped into Scraper Shaft |
|
Electrical
Standard 208-240 volts, 60 Hz, 3 phase, 4 wire |
|
Standard Voltage
120/208-240 volts, 60 Hz, 3 phase, 4 wire |
Alternate Mounting Systems (wall) |
|
Covers (MTP) |
|
Flow Diverter (FD) |
|
Food Strainer (FS) |
|
Kettle Accessory Kit (KAK) includes:Clean-up Brush (CB), 36" Kettle Paddle (KP), 36" Kettle Whip (KW), 36" Kettle Brush (KB), Draw-off Brush (DB), 24 oz. Ladle (KL) |
|
Leg Extensions (ELTMK) |
|
Pan Carrier (PCK) |
|
Product Time/Temperature Controls and Indicators |
|
Swing Funnels (SF-1 or SF-2) |
|
Type 316 Stainless Steel Kettle Interior for high acid food products (316-12G) |
|
Automatic Water Cooling (AWC-2) |
|
Alternate Draw-Off Valves |
|
Pressure Reducing Valve (PRV) |
|
Power Tilt (PT) where not standard |
|
Water Meter (GMF or LMF) built into system |
|
Accessories for connection to Food Pumps |
