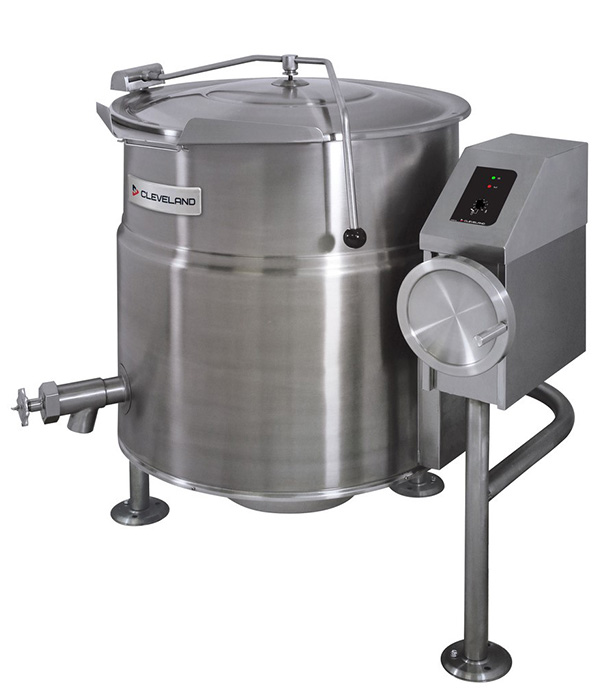

KEL-T: Electric tilting steam kettle
50 PSI STEAM JACKET RATING (3.5 Bar) 2/3 STEAM JACKETED, 25, 40 or 60 GALLONS (100, 150 or 225 LITERS)
CLEVELAND, Electric Kettle, Tri-leg mounted, self-contained, tilting, 2/3 Steam Jacketed. Type 304 Stainless Steel Kettle and Supports. 50 psi Steam Jacket Rating, 50 psi Safety Valve (3.5 Bar Boiling Pan), Permanently filled Steam Jacket, Combination Pressure/Vacuum Jacket Gauge. Splash Proof Solid State Temperature (±1° C) and Safety Control System in plug-in Module including L.E.D. indicators, Optional 2" (50 mm) Tangent Draw Off and Spring Assist Cover
|
Water Resistant Controls
Splash-proof construction |
|
Pouring Lip
Large pouring lip for high capacity and chunky products. |
|
Rolled Rim
Re-inforced rolled rim design prevents damage to kettle rim, eliminates "bar rim designs" |
|
Heating Elements
Welded-in heating elements, (holds vacuum better, won't leak or loose water) |
|
Easily Cleaned
Kettle and all exterior surfaces are of type 304 stainless steel with an #4 finish |
|
Pressure Gauge
Rear mounted easy access pressure gauge and pressure relief valve to prevent tampering. Color coded easy to read pressure gauge with "green" and "vent air zone" |
|
Jacket Rating
50 psi steam jacket rating for higher cooking temperatures |
|
Safety Valve
50 psi |
|
Water Level Control
Solid state water level control (no sight glass gauge to break or leak) |
|
Element Cover
Splash proof element cover with a double gasket seal |
|
Standard voltage
208-240 volts, 60 Hz, 3 phase, 3 wire. Model KET-6 and KET-12 are field rewirable to single phase |
|
State of the Art Controls
Accurate, consistant solid state temperature controls (mechanical thermostate not as accurate) - less than ±1°C variance (ideal for simmering). Operating temperature range from 145° - 260°F (63°C - 127°C) Control panel includes:LED indicator for heat cycle, LED indicator for low water Power ON/OFF switch, Adjustable temperature control dial |
|
Self Contained Electric Steam Source
Electricial connection and option water connections |
|
50 PSI Steam Jacket Rating (3.5 Bar) for High Speed Cooking
Steam jacket filled with treated water, venting and/or refilling is not required |
|
Tilt Mechanism
Tilt mechanism of roller bearings and case hardened self-locking worm and segment gear |
|
Legs
1 5/8" O.D. tri-leg supports with level adjustable feet for floor bolting |
|
Shipping Weights, KW's, Dims (W x D X H)
KEL25T 290 lbs (132 kgs) 9.8 kW, 37" (759mm) x 34" (556mm) x 31" (788mm)KEL40T 360 lbs (163 kgs) 14.7 kW, 42" (1055mm) x 37" (943mm) x 38" (959mm)KEL60T 415 lbs (188 kgs) 14.7 kW, 45" (1143mm) x 38" (975mm) x 41" (1045mm) |
316 Kettle Liner316 Stainless Steel kettle liner for high acid food products (316-G) |
|
Cooking Baskets(BS) |
|
Cover Domed - CHSSpring-assisted, hinged, rotatable, domed Stainless Steel Cover (CHS) |
|
ElectricalHigh wattages (HW) and special voltages |
|
FaucetHot and cold (DPK) or cold only (SPK) water faucet with swing spout. Requires mounting bracket (FBKT) |
|
Food Strainers(FS) |
|
Kettle Accessory Kit (KAK)Clean-up Brush (CB), 36" Kettle Paddle (KP)36" Kettle Whip (KW), 36" Kettle Brush (KB)Draw-off Brush (DB), 24 oz. Ladle (KL) |
|
Kettle Markings(KM) |
|
Measuring Strips(MS) |
|
Spray Hose(PRS-K) |
