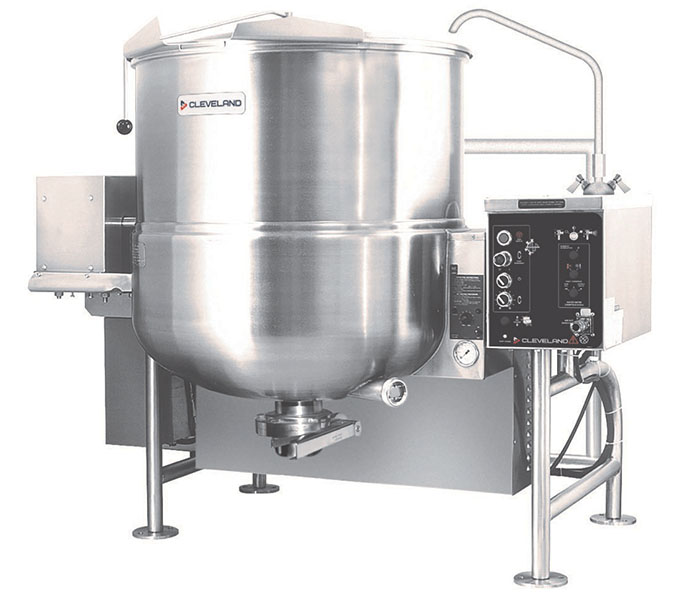

HAMKGLT: Gas tilting mixer kettle, horizontal agitator

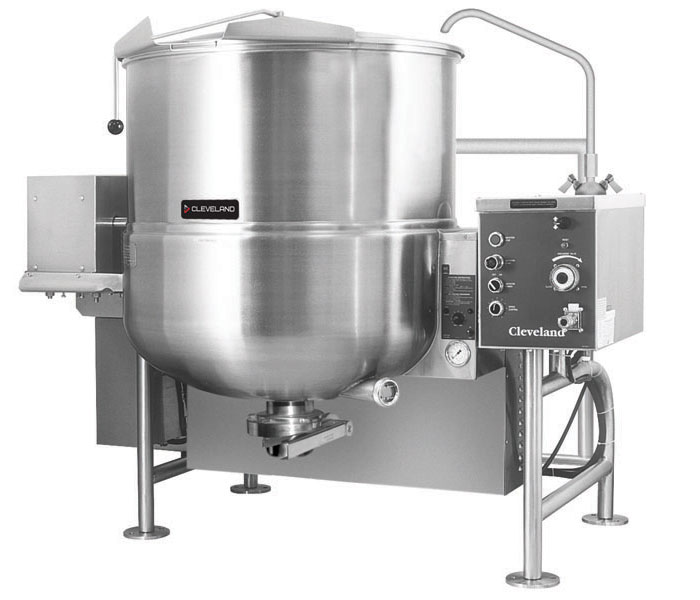

GAS, HORIZONTAL AGITATOR, TILTING MIXER KETTLES
Cleveland Model HA-MKGL- ____ -T, gas fired, 2/3 steam jacketed, ____ gallon operating capacity, tilting horizontal agitator mixer kettle. 190M BTU High Efficiency Power Burner heating system with automatic Glow Type Ignition, type 304 stainless steel with #4 finish on kettle and supports, insulated Heat Exchanger, 50 psi jacket rating, 3HP Motor Drive for mixer arm with variable speed control, variable temperatures control, L.E.D. indicators for heat cycle and low water warning, 3" dia. Butterfly Valve.
|
Controls
Precise solid state temperature control |
|
Solid State
Solid state low water safety controls in a plug-in module |
|
Indicators
L.E.D. indicators for heat cycle and low water warning |
|
Cover
Spring assisted, hinged stainless steel cover |
|
Heating
190 M-BTU high efficiency power burner heating system for fast heat-up and recovery times |
|
Steam Jacket
Kettle steam jacket permanently filled with treated distilled water |
|
Rating
50 psi steam jacket rating and safety valve |
|
Rim Bar
Heavy duty welded rim bar |
|
Capacity
Full 60, 80 or 100 gallon working capacity |
|
Tilting
Power tilt mechanism with case hardened self-locking worm and segment gear |
|
Construction
Type 304 Stainless Steel construction, with #4 finish on kettle and supports |
|
Gas
Standard for natural gas operation |
|
Discharge Valve
3" dia. butterfly valve |
|
Horizontal Agitator Drive
Three (3) horse power horizontal agitator. Variable mixer speed control from 5 to 20 r.p.m. with agitator start/stop controls. Spring loaded teflon blades scrape the entire heated surface area. Internal mixing fins for most efficient, uniform mixing of products. Easily removable agitator without the use of tools. |
|
Safety Valve
ront mounted combination pressure-vacuum gauge. |
|
Water Fill Faucet
With swing spout for hot and cold water. Bracket included. |
|
Electrical
Standard Electrical for agitator drive is 208V/3Ph/60Hz |
|
USDA
Accepted for use in USDA inspected facilities |
3" diameter air operated flush mounted piston draw-off valveWith variable control (FPVA3, for use with a food pump, replaces 3" butterfly valve, requires air compressor) |
|
Automatic water meter (GMF or LMF) Wall or stand mounted) |
|
Dolly for horizontal agitator |
|
ElectricalVoltage option for agitator drive other than standard 208V/3Ph/60Hz |
|
Food Strainer (FS) |
|
Kettle Accessory Kit (KAK)Clean-up Brush (CB), 36" Kettle Paddle (KP)36" Kettle Whip (KW), 36" Kettle Brush (KB)Draw-off Brush (DB), 24 oz. Ladle (KL) |
|
Option for propane gas operation (PG) |
|
Propane GasOption for propane gas operation (PG) |
|
Stainless steel bi-fold hinged cover |
|
Type 316 stainless steel kettle liner for high acid products (316) |
